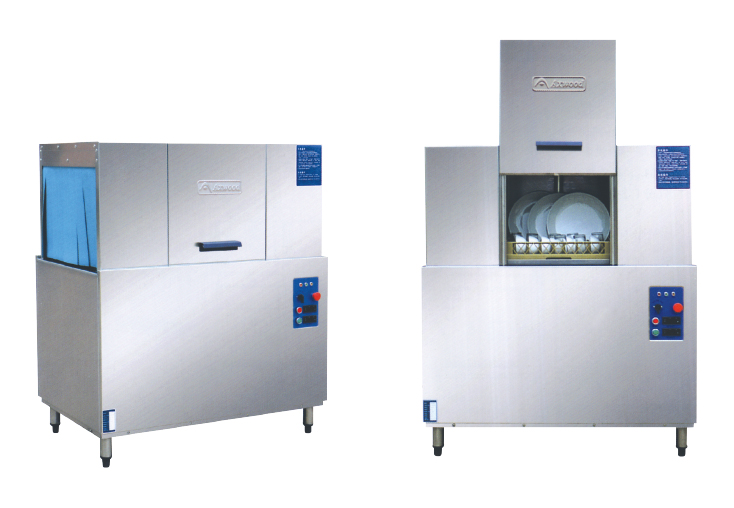

Single Tank Rack Conveyor Dishwasher (ET-AXE-A01-02D)
Product Name
Model
ET-AXE-302D ET-AXE-301D Dimensions (mm)
W573xD607xH820 W573xD607xH820 Power (BTU/hr) W630xD688xH1000 W630xD688xH1000 Volt 220V/50Hz 380V/50Hz Power (KW) 0.6 2.2 Booster Heater (KW) 2.4 6 Wash pump( KW ) 0.5 0.5 Total power(KW) 3.5 8.7 Total Amps Requirsd ( A ) 16 19 Incoming Water Temperature( ํC) 40-60 10-60 Basker Size ( MM) 503 503 Useful Height ( MM) 333 333 Racks (Rack/ Hour) 60 60 Water Consumption ( Liter/ Rack) 2.8 2.8 Water Tank Capacity (Liter) 27 27 Booster Tank Capacity (Liter) 6 6 Water Temperature( ํC) 55-60 55-60 Rinse Temperature( ํC) 82-90 82-90 Wash Cycle (S) 90/120/180 60/90/120 Water Inlet (S) 3/4" 3/4" Drain Outlet (In) 3/4" 3/4" Inlet Water Pressure (Kpa) 200-500 200-500 Inlet Water Hardness ( g/L) 0.034-0.103 0.034-0.103 N/W ( kg ) 67.5 67.5
